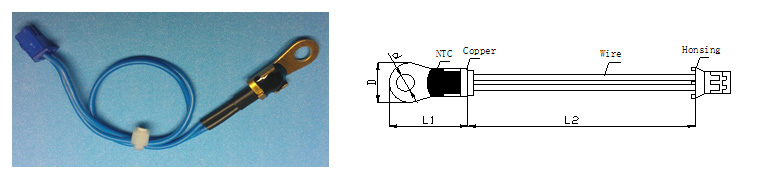

Power module temperature sensor
產品性能簡述
Description of Product Performance
| Code(代碼) | d | D | L1 | L2 | |||
|---|---|---|---|---|---|---|---|
| Dimension (尺寸) | 客戶自定義 Customized | ≥50mm | |||||
| 產品性能 | 1、線材規格：依客戶需求 | Product Performance | 1.Wire specification：By Customer's Requirements. | ||||
| 2、絕緣：DC500V Min 100MΩ,3Sec | 2.Insulation：DC500V Min 100MΩ,3Sec | ||||||
| 3、使用溫度范圍： -30℃～105℃ | 3.Operating temperature range：-30℃～105℃ | ||||||
| 產品特點 | 1、采用高精度、高穩定性元件封裝，測量溫差小，溫度更準確. | Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | ||||
| 2、產品特殊防水、防潮處理，潮濕環境工作穩定 | 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | ||||||
| 3、產品安裝方便、抗寒、耐熱性能優良可長期負荷工作 | 3.Product installation is convenient, cold resistance, excellent heat resistance, long-term load work | ||||||
| 產品用途 | 適用于電源溫控模塊 | Product Usage | apply to power supply temperature control module | ||||

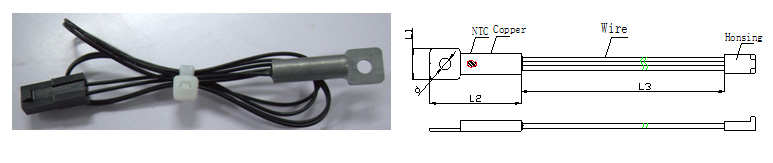

Mosquito killer temperature sensor
產品性能簡述
Description of Product Performance
| Code(代碼) | d | L1 | L2 | L3 | |||
|---|---|---|---|---|---|---|---|
| Dimension (尺寸) | 3.6mm | 9.6mm | 29.0mm | ≥50mm | |||
| 產品性能 | 1、線材規格：依客戶需求 | Product Performance | 1.Wire specification：By Customer's Requirements. | ||||
| 2、耐壓：AC1000V～AC2000V,3Sec | 2.Withstand voltage ：AC1000V～AC2000V,3Sec | ||||||
| 3、絕緣：DC500V Min 100MΩ,3Sec | 3.Insulation：DC500V Min 100MΩ,3Sec | ||||||
| 4、使用溫度范圍： -30℃～105℃ | 4.Operating temperature range：-30℃～105℃ | ||||||
| -30℃～125℃ | -30℃～125℃ | ||||||
| -30℃～150℃ | -30℃～150℃ | ||||||
| 產品特點 | 1、采用高精度、高穩定性元件封裝，測量溫差小，溫度更準確. | Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | ||||
| 2、產品特殊防水、防潮處理，潮濕環境工作穩定 | 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | ||||||
| 3、產品安裝方便、抗寒、耐熱性能優良可長期負荷工作 | 3.Product installation is convenient, cold resistance, excellent heat resistance, long-term load work | ||||||
| 產品用途 | 適用于滅蚊機溫控模塊 | Product Usage | apply to mosquito killer temperature control module | ||||

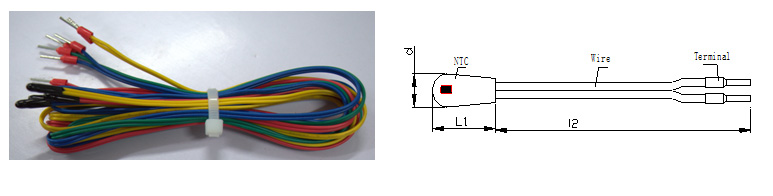

Fire equipment temperature sensor
產品性能簡述
Description of Product Performance
| Code(代碼) | d | L1 | L2 | ||
|---|---|---|---|---|---|
| Dimension (尺寸) | 客戶自定義 Customized | ≥50mm | |||
| 產品性能 | 1、線材規格：依客戶需求 | Product Performance | 1.Wire specification：By Customer's Requirements. | ||
| 2、耐壓：AC1000V～AC2000V,3Sec | 2.Withstand voltage ：AC1000V～AC2000V,3Sec | ||||
| 3、絕緣：DC500V Min 100MΩ,3Sec | 3.Insulation：DC500V Min 100MΩ,3Sec | ||||
| 4、使用溫度范圍： -30℃～105℃ | 4.Operating temperature range：-30℃～105℃ | ||||
| -30℃～125℃ | -30℃～125℃ | ||||
| -30℃～150℃ | -30℃～150℃ | ||||
| 產品特點 | 1、采用高精度、高穩定性元件封裝，測量溫差小，溫度更準確. | Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | ||
| 2、產品特殊防水、防潮處理，潮濕環境工作穩定 | 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | ||||
| 3、產品安裝方便、抗寒、耐熱性能優良可長期負荷工作 | 3.Product installation is convenient, cold resistance, excellent heat resistance, long-term load work | ||||
| 產品用途 | 適用于消防器材溫控模塊 | Product Usage | apply to fire equipment temperature control module | ||
